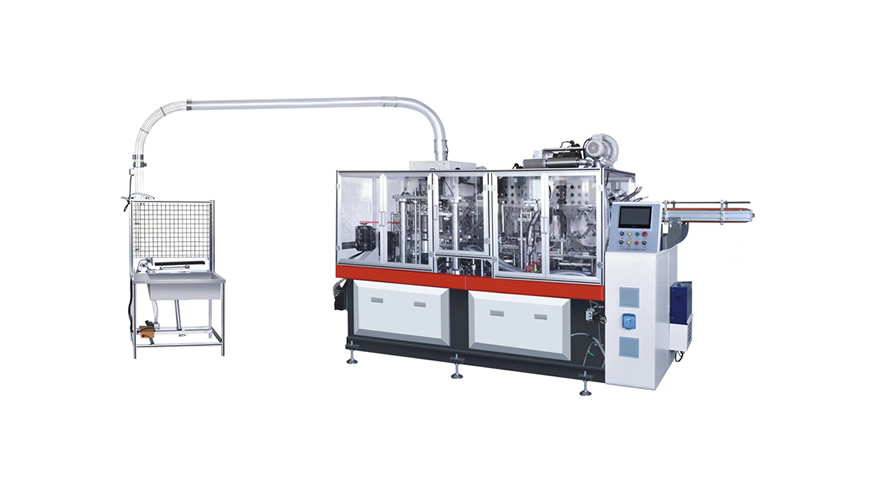

JC-SF180 FULLY AUTOMATIC SERVO HIGH-SPEED PAPER CUPFORMING MACHINE


Main technical parameters

Speed

(speedis influenced by cup size, paper quality, and thickness)

Paper cup size

Each set of molds produces a cup of different sizes, and molds need to beeplaced for cups of different sizes

Powerrequirements

3phase 380V 50Hz

Workingpressure

最小压力:0.6千克力/平方厘米气耗:0.5立方米/分钟

Total power

28Kw(实际消耗功率18kw/Actualpowerconsumption18kW)

Machine weight

3200Kg

Packaging size

机器:2900mx1720mmx2400mm收杯架:1000x850x2200mm

Raw material

PE/DUal PE/PLA Coated Cup Paper, Aluminum Foil Paper

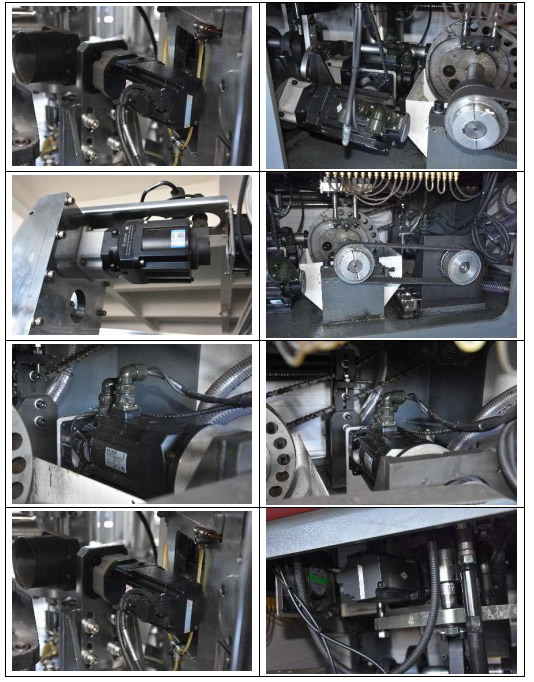

The machine adopts 8 servos to work with the machinery to keep the machine working accurately and make no mistakes when running at high speed.

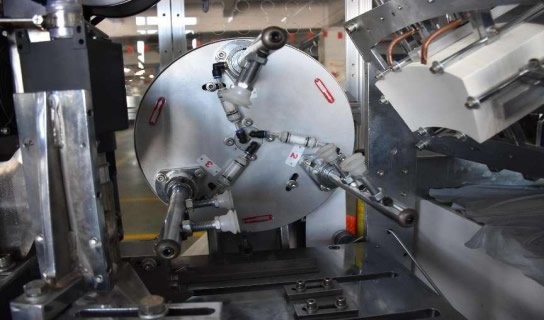

Rotary suction device


The rotating paper suction device is more stable than ordinary paper suction, and it does not jam paper during operation, and is more suitable for high-speed operation.


Rotary suction device

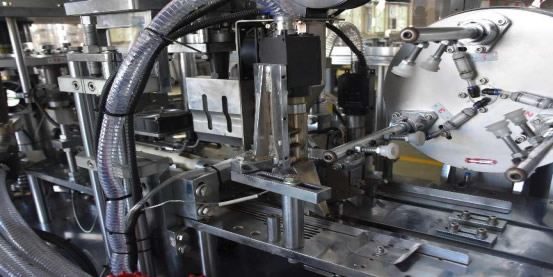

Fan paper interface hot air preheating device


The hot air interface preheating is located on both sides of the fan paper, and the hot air preheater preheats the sealing part of the paper to ensure that the ultrasonic sealing can better glue the paper without leaking when the machine is running at high speed.

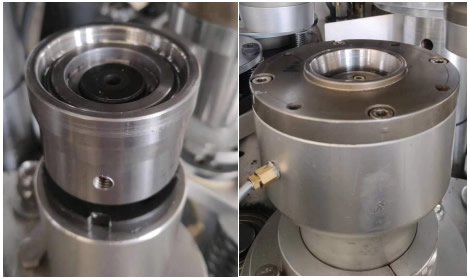

Double flanging device


The double edging is more suitable for high-speed operation, and the heater makes the paper cup more beautiful, no burst, and the cup is tighter.

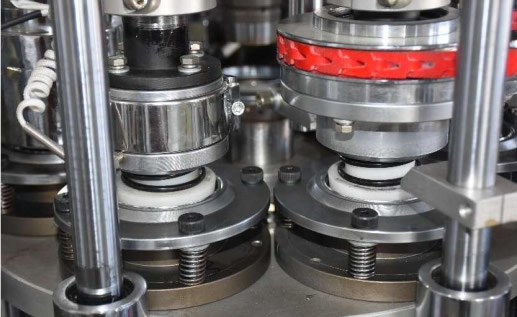

Bottom 2 rotation knurled


Two rotating knurls make the bottom more cohesive and the bottom of the cup does not leak.

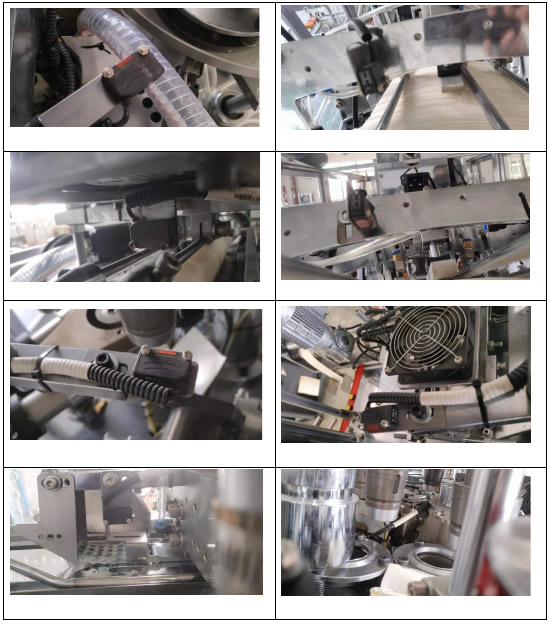

Inlet photoelectric inspection


In the operation of the machine, paper jam, lack of paper, adhesion, blockage and other situations, the machine will automatically stop running, to ensure the safety of parts, no damage.
